Tubular Motor

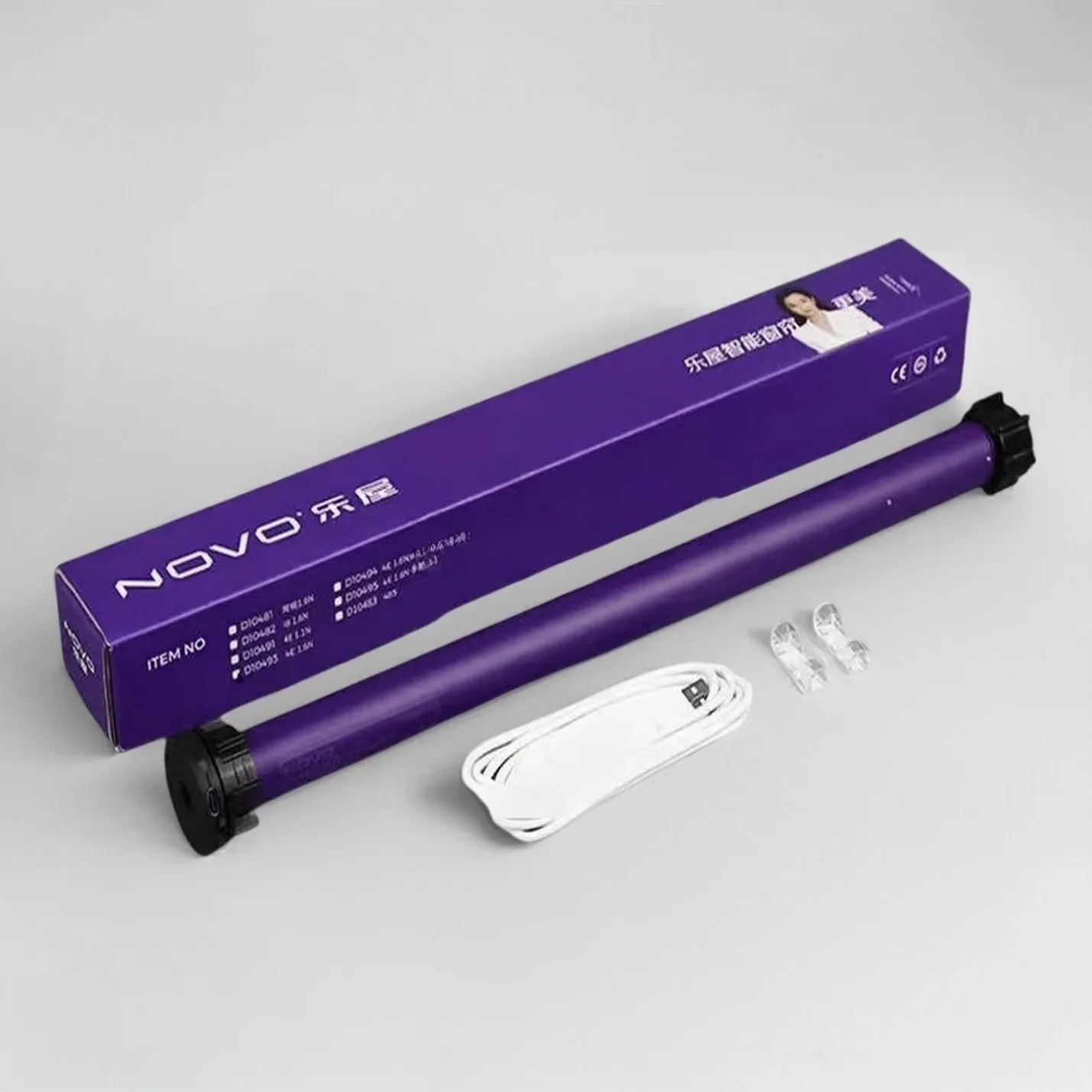

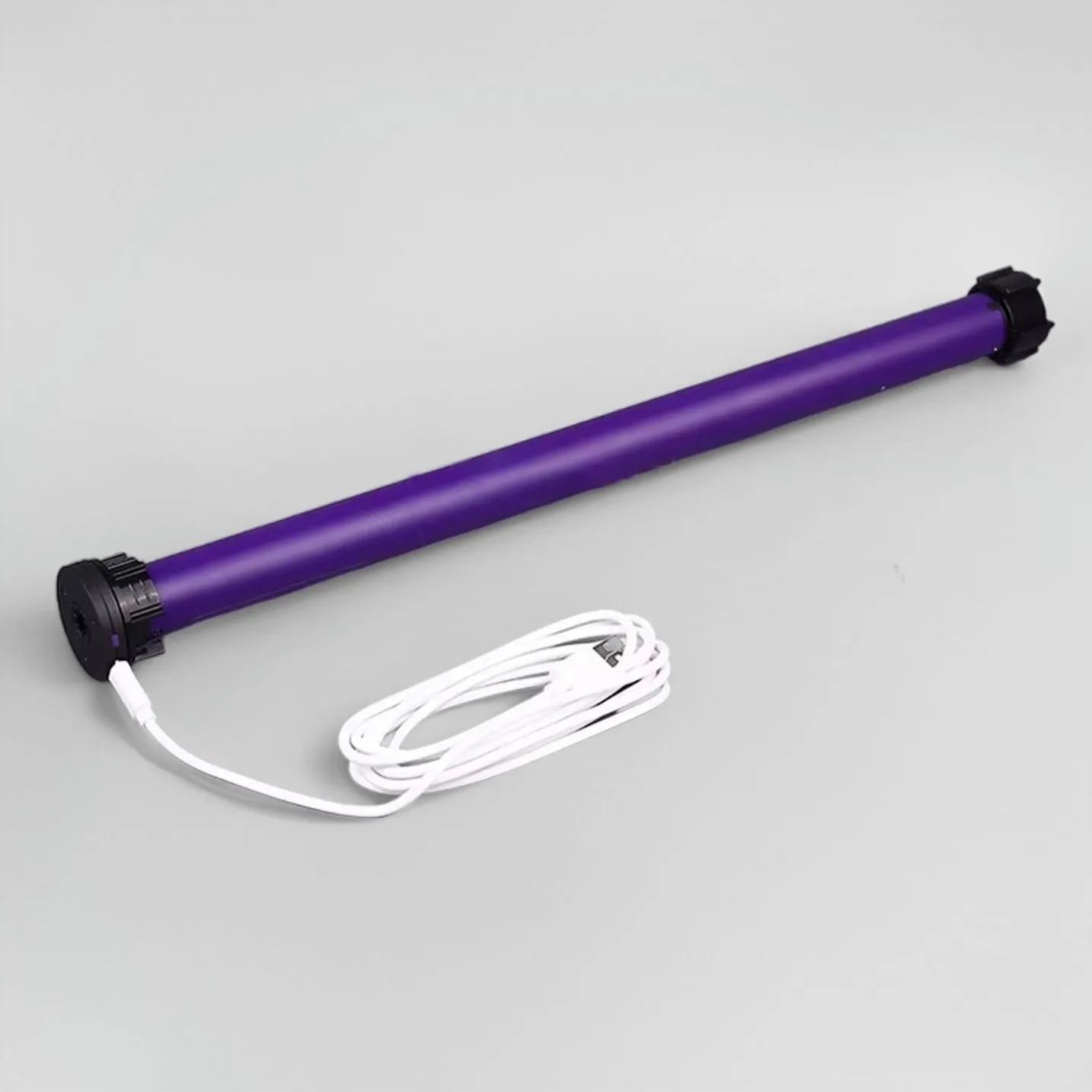

NOVO K25 Series Tubular Motor
The K25 is a 25mm diameter built-in lithium battery tubular motor featuring wireless installation. It is compatible withΦ38mm roller shutter tubes, ideal for residential and office roller shutters, and supports direct retrofitting of manual roller shutters to electric ones.
Specifications
- Brand
- NOVO
- Model

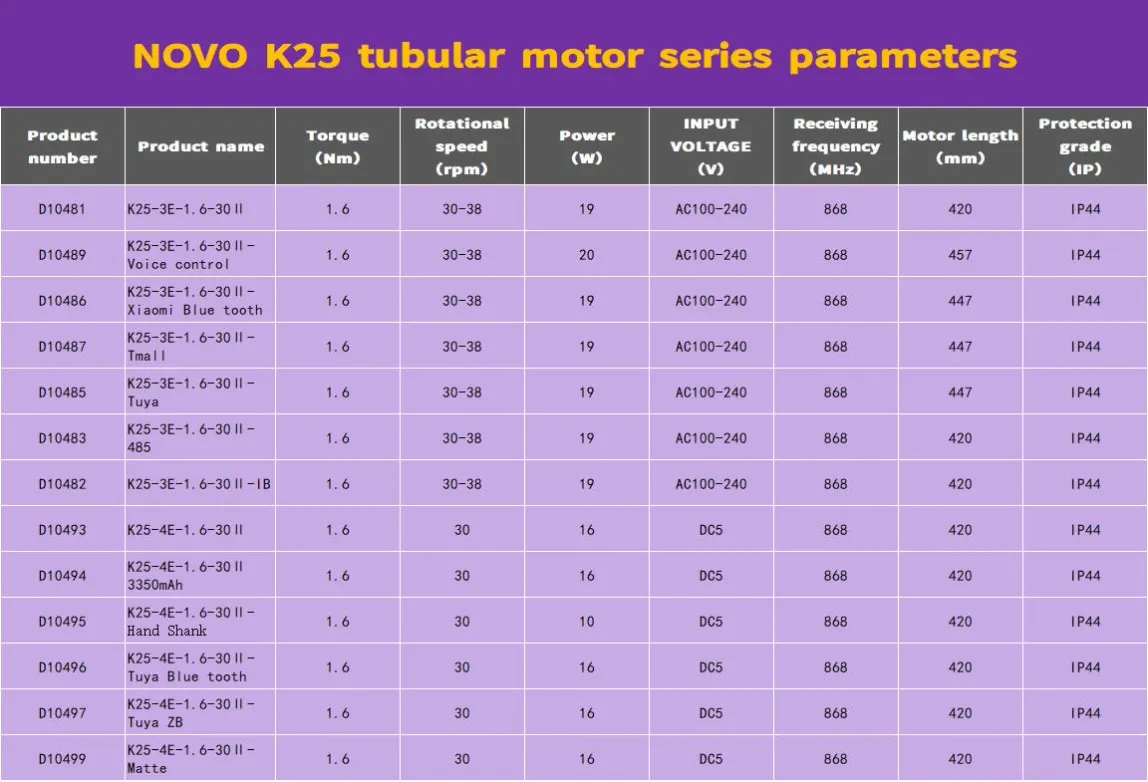

- NOVO K35 tubular motor series parameters
- Ouality Guarantee
- 5 years warranty
The K25 is a 25mm diameter built-in lithium battery tubular motor featuring wireless installation. It is compatible withΦ38mm roller shutter tubes, ideal for residential and office roller shutters, and supports direct retrofitting of manual roller shutters to electric ones.
Basic Hardware Parameters
- Battery: 3200mAh built-in lithium battery, Type-C charging port, compatible with external solar panels
- Battery Life: Approximately 3-6 months per full charge for standard versions; up to 1 year for models with manual crank
- Torque: 1.1N·m / 1.6N·m; Rotation Speed: 26rpm, 30rpm
- IP44 protection rating, built-in brake, arbitrary position stop, low-noise gearbox
- Power Supply: Fully wireless design, no 220V hard wiring required
Main Version Classification (Key Selection Guide)
- Standard RF Version K25-4E: Controlled by RF remote controller, no APP required, the best choice for simple retrofitting
- Mijia Bluetooth Mesh Version: Compatible with Mijia APP, supports XiaoAI voice control, timing and scene linkage; requires a Bluetooth Mesh gateway
- Tuya Version: Works with Tuya APP and Tmall Genie, adapting to the Tuya smart ecosystem
- AI Offline Voice Version: Built-in sound pickup module, no smart speaker needed, controllable via voice command "Hello Xiaole"
- Matter Version: Cross-protocol compatibility, directly connects with HomeKit, Alexa and Google Home, mainly for overseas and multi-ecosystem users
- RS485 Serial Port Version: Designed for engineering central control with two-way feedback, applicable to smart home engineering projects
- Manual Crank Version: Equipped with emergency manual crank for manual lifting even when power is off
Control Methods
- RF remote controller (single control & group control)
- Mobile APP & smart speaker voice control
- Offline voice control (applicable to dedicated versions)
- Support for timing, percentage position adjustment and scene linkage
Installation Compatibility
- Roller Tube: Φ38mm aluminum alloy roller tube (most commonly used)
- Features: Wiring-free installation, electric upgrade available by replacing the motor of traditional manual roller shutters
- Warranty: Official 5-year warranty
Basic Operation Instructions
- Code Pairing: Press the setting button on the motor body until the motor vibrates. Press the P1 button on the remote controller within 10 seconds, and pairing is successful when the motor vibrates again.
- Limit Setting: Press the P2 button on the remote controller to enter limit mode, set and save the upper and lower travel positions respectively.
- Direction Reversal: Long press the P2 button until vibration occurs. Within 10 seconds, long press the stop button for 5 seconds to complete direction switching.
Tip: The Mijia version requires a Bluetooth Mesh gateway for remote control; only short-distance Bluetooth control is available without a gateway.
